RapidStream

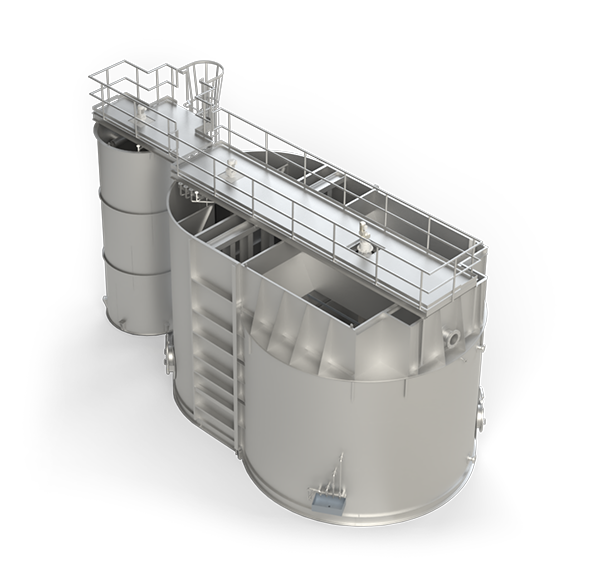

The ClearStream RapidStream™ builds on proven technology to provide Chemical Mixing, Solids Contacting, Thickening, and High-rate Clarification in an economical footprint. CleasrStream’s 20+ years of experience in building all types of sedimentation equipment allows us to provide clients with custom equipment optimized for their needs.

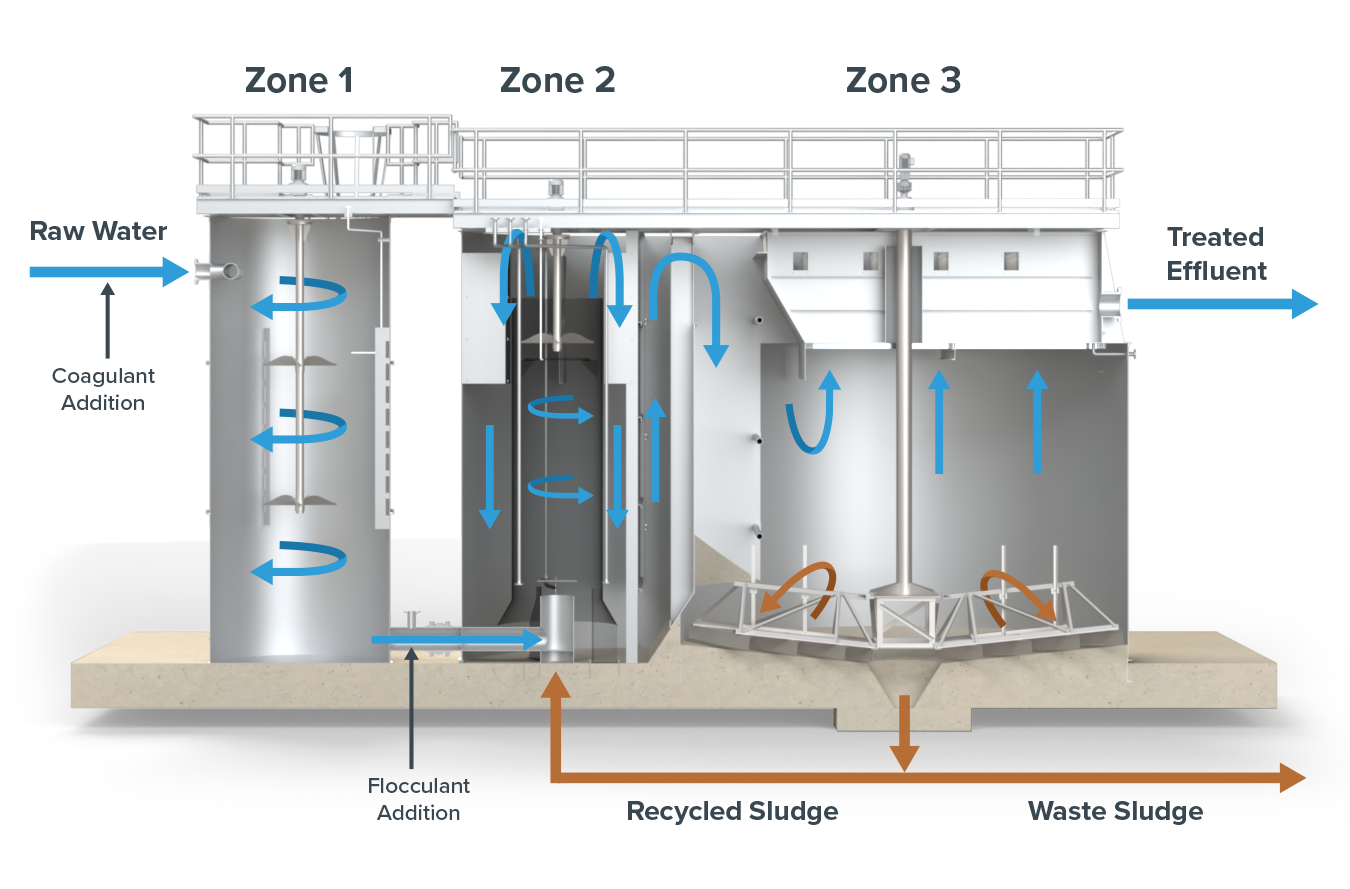

Zone 1—Rapid Mix, Complete Coagulant dispersion ensures total charge neutralization.

Zone 2—Flocculant and Recycled Sludge are mixed with the Raw Water to begin the Solids Contact process. The draft tube and impeller draw the solids up to be thoroughly mixed. As the solids and  polymers are mixed and recirculated though this Zone, the floc is allowed to grow in size and weight.

Zone 3—After passing over an Upflow Wier, the flocculated solids settle to the Thickener portion of the unit where Pickets on the rake arm further thickens the solids. The mainstream passes through Tube Settlers which provide the High-rate Clarification.

ClearStream develops a detailed 3D model for every unit manufactured, ensuring accurate fit-up and seamless integration with site-specific layouts. These models also serve as a valuable tool for operator training and system familiarization, providing clear insight into unit design and operation.

Clients are provided access to the 3D models, allowing them to view and manipulate the equipment from their own office or facility. This capability enables operations and maintenance personnel to virtually inspect the unit, plan maintenance activities, and understand internal components—without draining the tank or interrupting operation.
